What Are Bed Fittings, and Why Do They Matter?
A bed fitting is the hardware mechanism — the metal frame, hinges, gas springs, and lift arms — that a carpenter or furniture manufacturer builds a bed or wardrobe-bed cabinet around. Get the fitting right, and a bed can fold flush into a wall, lift up on gas springs for hidden storage, or slide out from beneath a sofa or second bed. Get it wrong, and the finished piece sags, jams, or fails within a year.
Mirano by Varun Impex manufactures a complete range of bed fittings for the modular furniture industry: wall bed (hideaway) mechanisms, hydraulic storage bed fittings, pull-out bed systems, and self-supporting hotel bed frames — in manual and motorized versions, across single, double, and king sizes. Every mechanism is supplied with full technical drawings and weight-load specifications, so your carpenters or production team can build around it with confidence the first time.
Below, you'll find all 10 Mirano bed fitting systems, their exact dimensions, weight capacities, and where each one fits best — from studio apartments to hotel chains.
Our Bed Fitting Range
Ten engineered systems across wall beds, storage beds, pull-outs and hotel frames — each with full technical drawings and specifications.

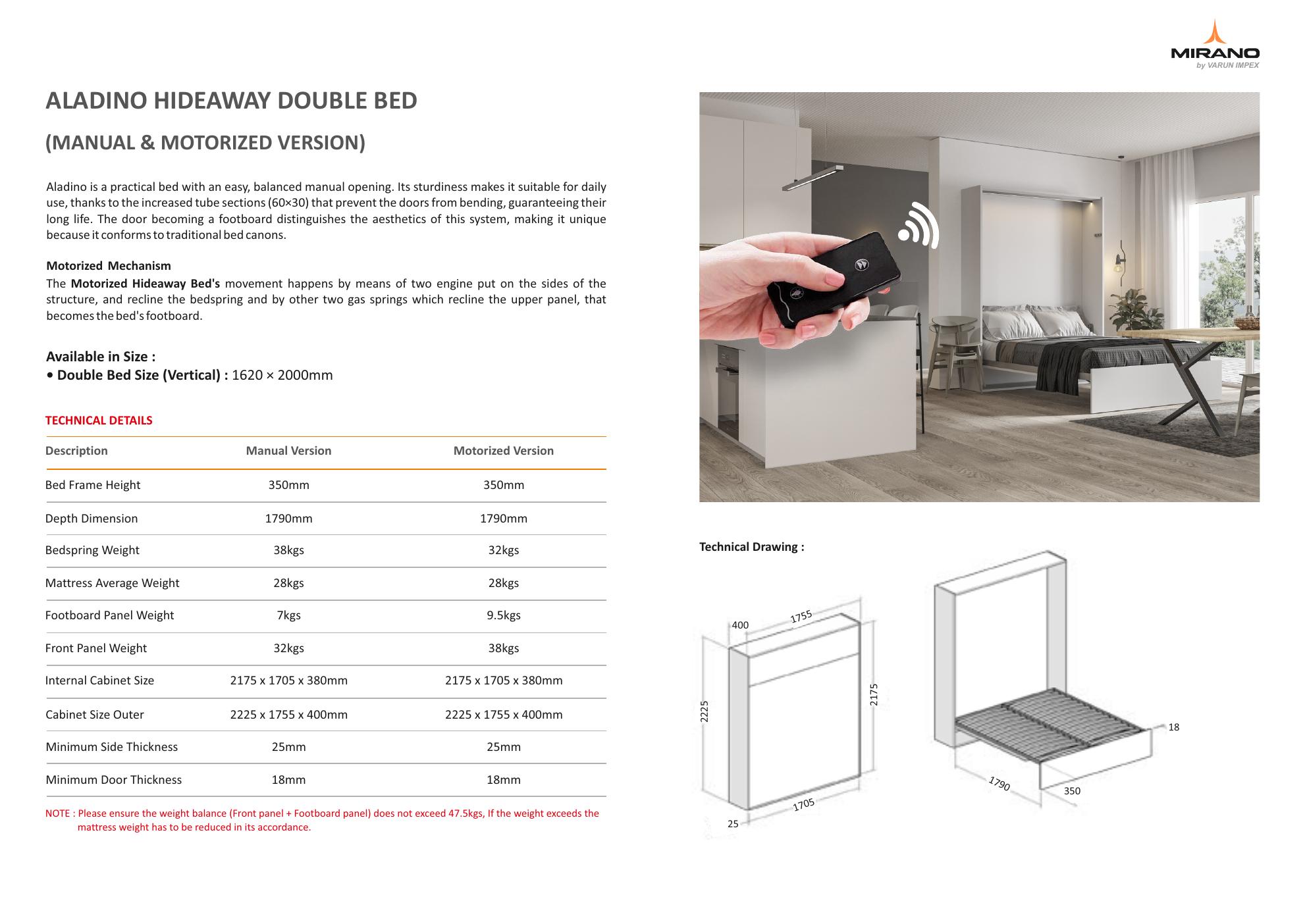

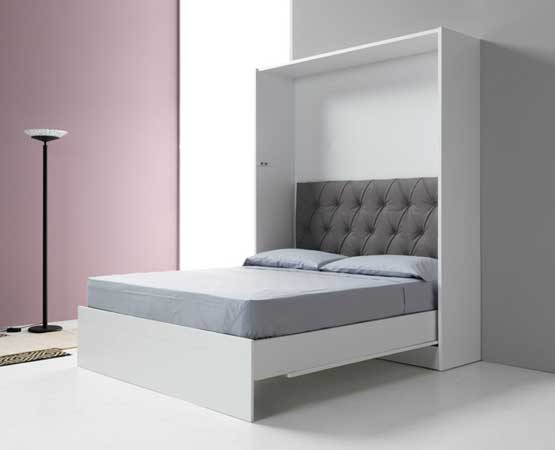

Aladino Hideaway Double Bed — Manual & Motorized Wall Bed Mechanism
The Aladino Hideaway Double Bed is a vertical wall bed mechanism that folds a full double bed into a wall-mounted cabinet, with the cabinet door converting into the bed's footboard when open. It's built for daily use in compact apartments, studio flats, and multi-purpose rooms where floor space needs to serve more than one function.
Key features
- Easy, balanced manual opening — safe for everyday use
- Increased 60×30mm tube sections prevent door bending and extend product life
- Door-to-footboard design keeps the traditional look of a real bed when open
- Motorized version available: dual side-mounted engines recline the bedspring, with two gas springs reclining the upper panel into the footboard, all operable by remote control
Technical specifications
| Description | Manual Version | Motorized Version |
|---|---|---|
| Bed Frame Height | 350mm | 350mm |
| Depth Dimension | 1790mm | 1790mm |
| Bedspring Weight | 38kgs | 32kgs |
| Mattress Average Weight | 28kgs | 28kgs |
| Footboard Panel Weight | 7kgs | 9.5kgs |
| Front Panel Weight | 32kgs | 38kgs |
| Internal Cabinet Size | 2175 × 1705 × 380mm | 2175 × 1705 × 380mm |
| Cabinet Size Outer | 2225 × 1755 × 400mm | 2225 × 1755 × 400mm |
| Minimum Side Thickness | 25mm | 25mm |
| Minimum Door Thickness | 18mm | 18mm |
- Manual Version
- 350mm
- Motorized Version
- 350mm
- Manual Version
- 1790mm
- Motorized Version
- 1790mm
- Manual Version
- 38kgs
- Motorized Version
- 32kgs
- Manual Version
- 28kgs
- Motorized Version
- 28kgs
- Manual Version
- 7kgs
- Motorized Version
- 9.5kgs
- Manual Version
- 32kgs
- Motorized Version
- 38kgs
- Manual Version
- 2175 × 1705 × 380mm
- Motorized Version
- 2175 × 1705 × 380mm
- Manual Version
- 2225 × 1755 × 400mm
- Motorized Version
- 2225 × 1755 × 400mm
- Manual Version
- 25mm
- Motorized Version
- 25mm
- Manual Version
- 18mm
- Motorized Version
- 18mm
Installation note: The combined weight of the front panel and footboard panel must not exceed 47.5kgs. If it does, reduce mattress weight accordingly.

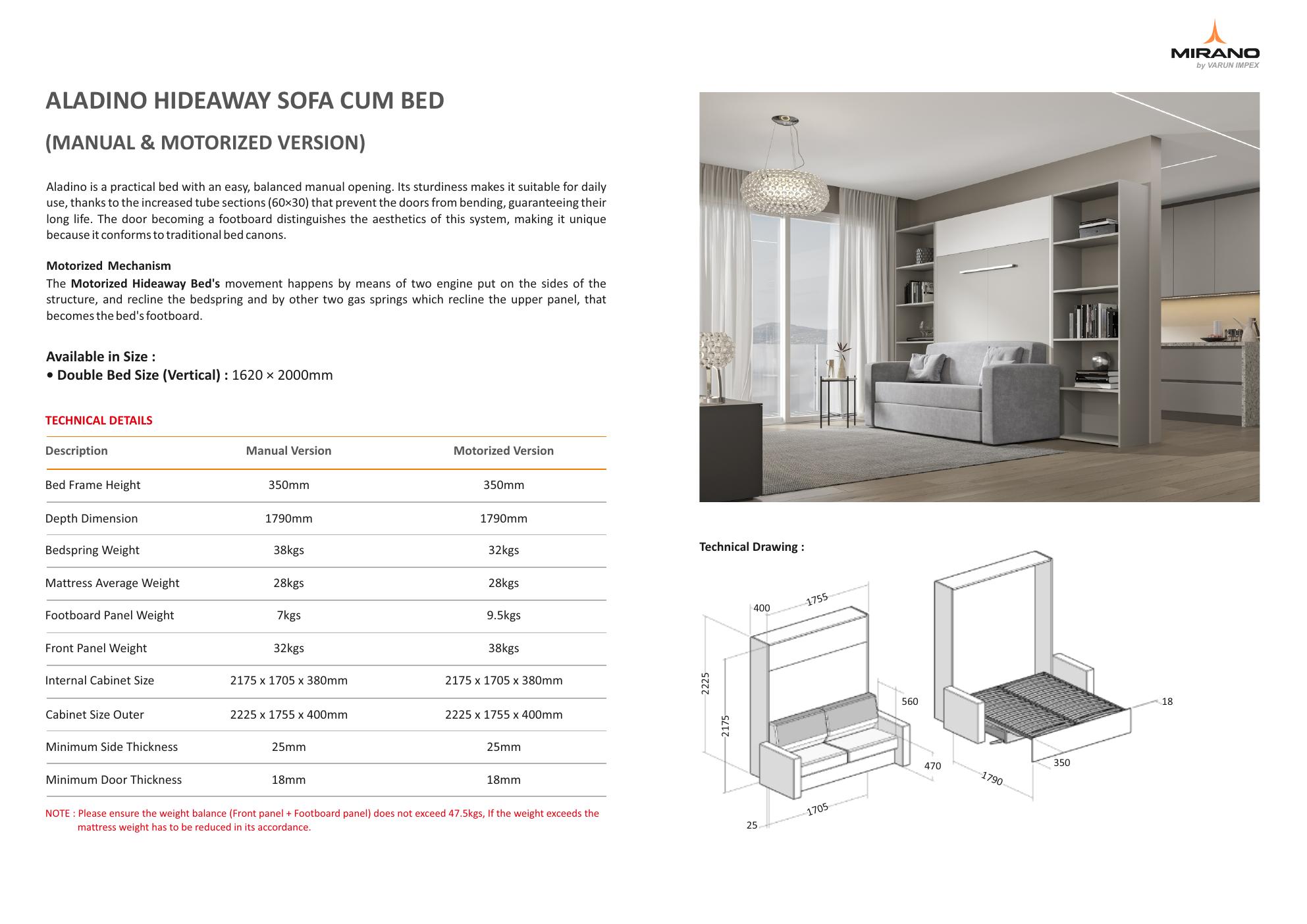

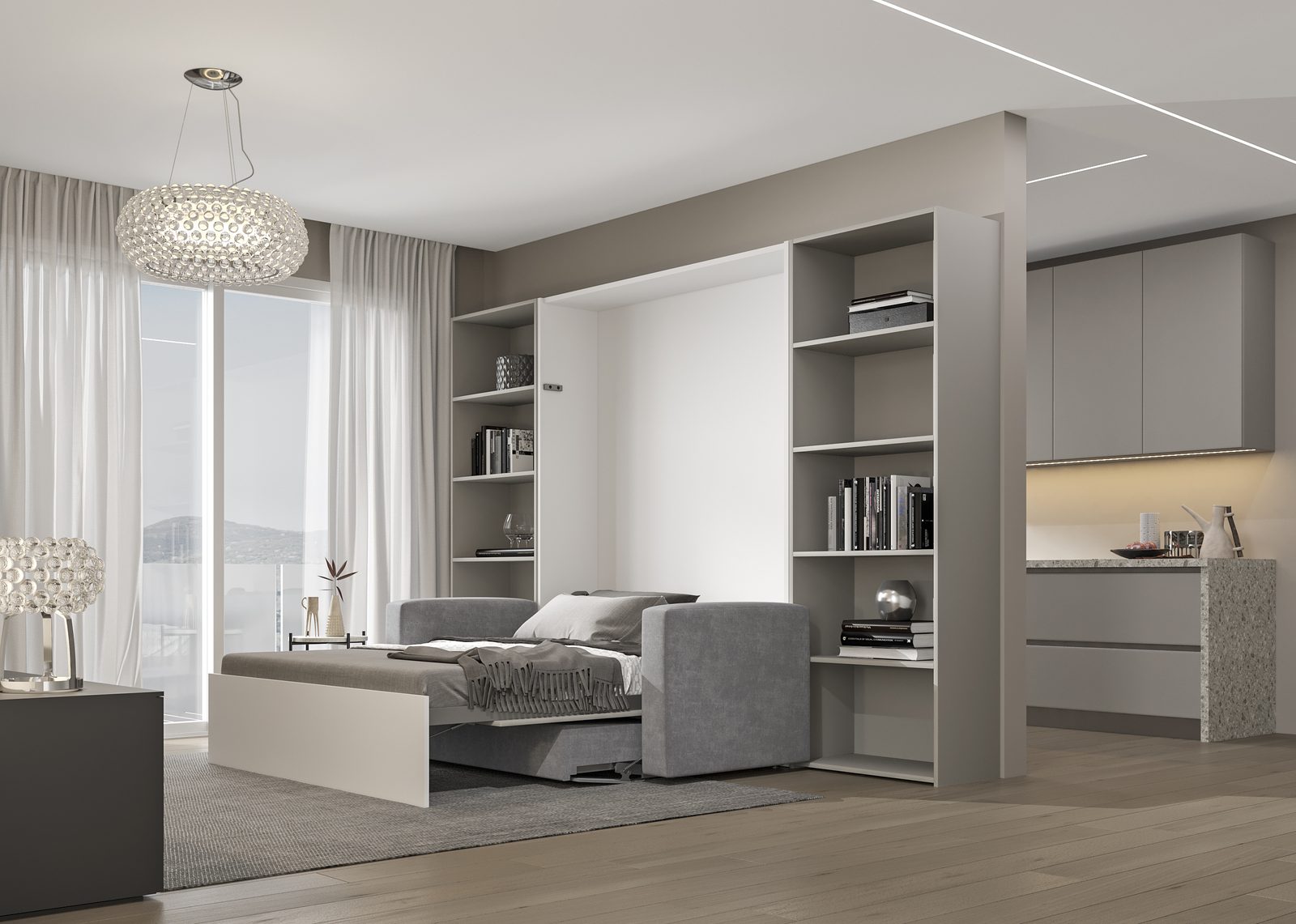

Aladino Hideaway Sofa Cum Bed — Manual & Motorized Wall Bed Mechanism
The Aladino Hideaway Sofa Cum Bed uses the same reliable Aladino mechanism, engineered to fold into a full sofa unit instead of a plain cabinet front. It's the fitting of choice when a client wants a genuine seating area during the day and a full double bed at night — without a bulky, uncomfortable sofa-bed frame.
Key features
- Same 60×30mm reinforced tube-section durability as the Aladino Double Bed
- Sofa front doubles as comfortable daytime seating, not just a cabinet door
- Motorized version available with dual-engine recline and gas-spring footboard action
- Balanced manual opening for smooth, safe daily operation
Technical specifications
| Description | Manual Version | Motorized Version |
|---|---|---|
| Bed Frame Height | 350mm | 350mm |
| Depth Dimension | 1790mm | 1790mm |
| Bedspring Weight | 38kgs | 32kgs |
| Mattress Average Weight | 28kgs | 28kgs |
| Footboard Panel Weight | 7kgs | 9.5kgs |
| Front Panel Weight | 32kgs | 38kgs |
| Internal Cabinet Size | 2175 × 1705 × 380mm | 2175 × 1705 × 380mm |
| Cabinet Size Outer | 2225 × 1755 × 400mm | 2225 × 1755 × 400mm |
| Minimum Side Thickness | 25mm | 25mm |
| Minimum Door Thickness | 18mm | 18mm |
- Manual Version
- 350mm
- Motorized Version
- 350mm
- Manual Version
- 1790mm
- Motorized Version
- 1790mm
- Manual Version
- 38kgs
- Motorized Version
- 32kgs
- Manual Version
- 28kgs
- Motorized Version
- 28kgs
- Manual Version
- 7kgs
- Motorized Version
- 9.5kgs
- Manual Version
- 32kgs
- Motorized Version
- 38kgs
- Manual Version
- 2175 × 1705 × 380mm
- Motorized Version
- 2175 × 1705 × 380mm
- Manual Version
- 2225 × 1755 × 400mm
- Motorized Version
- 2225 × 1755 × 400mm
- Manual Version
- 25mm
- Motorized Version
- 25mm
- Manual Version
- 18mm
- Motorized Version
- 18mm
Installation note: Combined front panel + footboard panel weight must not exceed 47.5kgs.

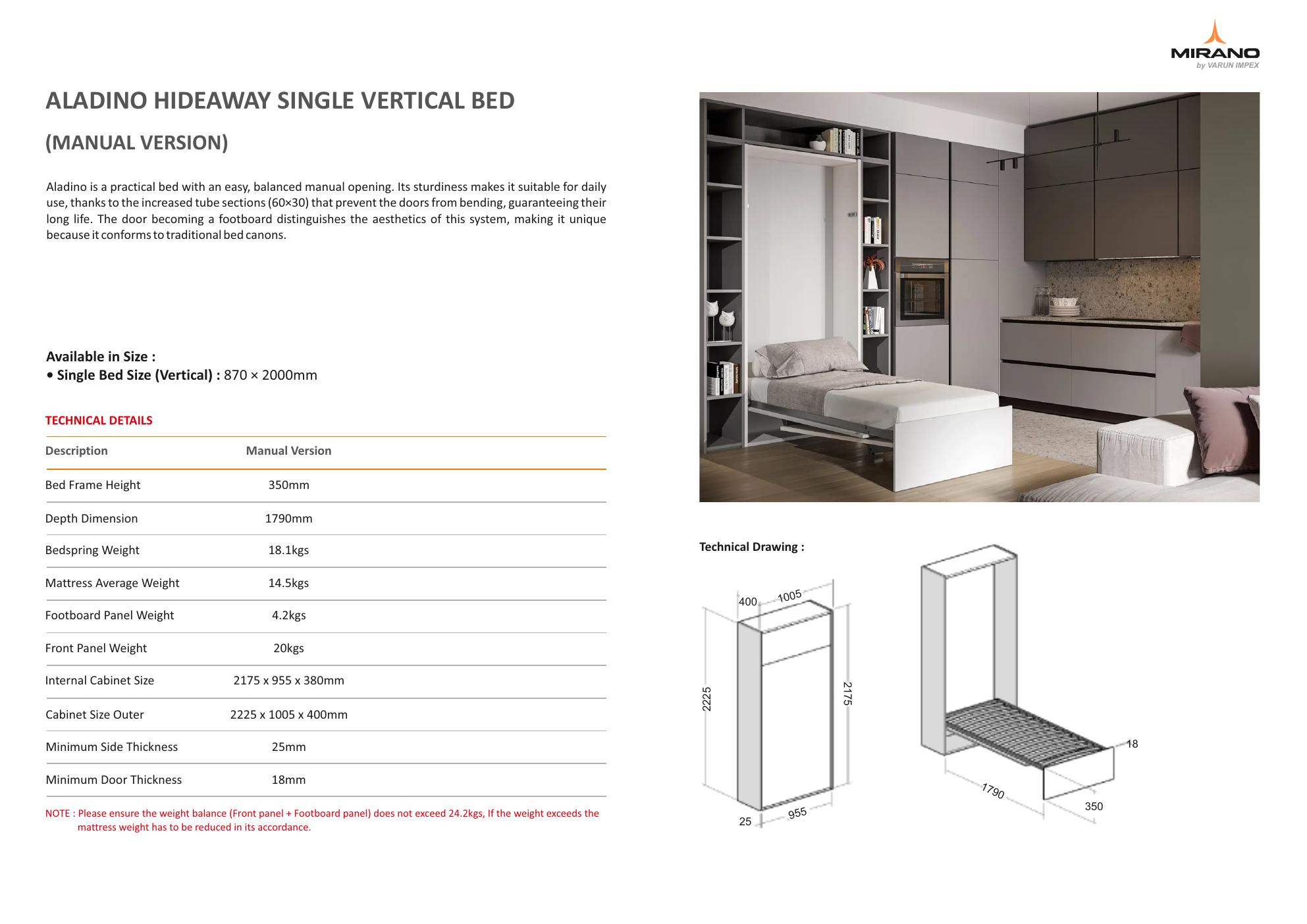

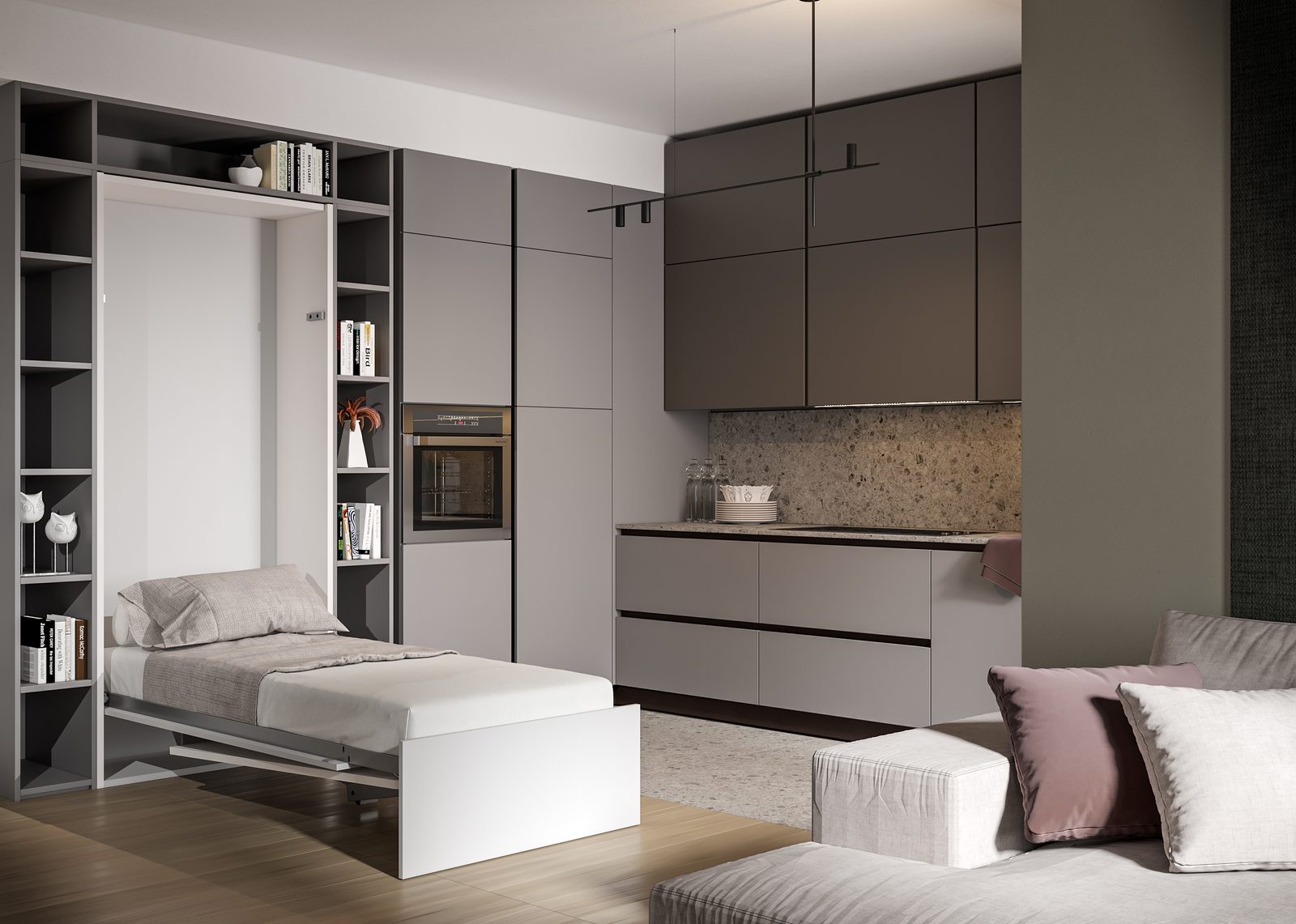

Aladino Hideaway Single Vertical Bed — Manual Wall Bed Mechanism
The single-bed version of the Aladino mechanism, built for kids' rooms, home offices, and micro-apartments where every square foot needs to earn its keep. The same footboard-as-door design and reinforced tube sections carry over from the double-bed version, scaled to a single mattress footprint.
Key features
- Easy, balanced manual opening
- 60×30mm reinforced tube sections for daily-use durability
- Compact 870mm width fits tight rooms, alcoves, and home-office walls
- Door becomes the footboard — no separate hardware to store
Technical specifications
| Description | Manual Version |
|---|---|
| Bed Frame Height | 350mm |
| Depth Dimension | 1790mm |
| Bedspring Weight | 18.1kgs |
| Mattress Average Weight | 14.5kgs |
| Footboard Panel Weight | 4.2kgs |
| Front Panel Weight | 20kgs |
| Internal Cabinet Size | 2175 × 955 × 380mm |
| Cabinet Size Outer | 2225 × 1005 × 400mm |
| Minimum Side Thickness | 25mm |
| Minimum Door Thickness | 18mm |
- Manual Version
- 350mm
- Manual Version
- 1790mm
- Manual Version
- 18.1kgs
- Manual Version
- 14.5kgs
- Manual Version
- 4.2kgs
- Manual Version
- 20kgs
- Manual Version
- 2175 × 955 × 380mm
- Manual Version
- 2225 × 1005 × 400mm
- Manual Version
- 25mm
- Manual Version
- 18mm
Installation note: Combined front panel + footboard panel weight must not exceed 24.2kgs.

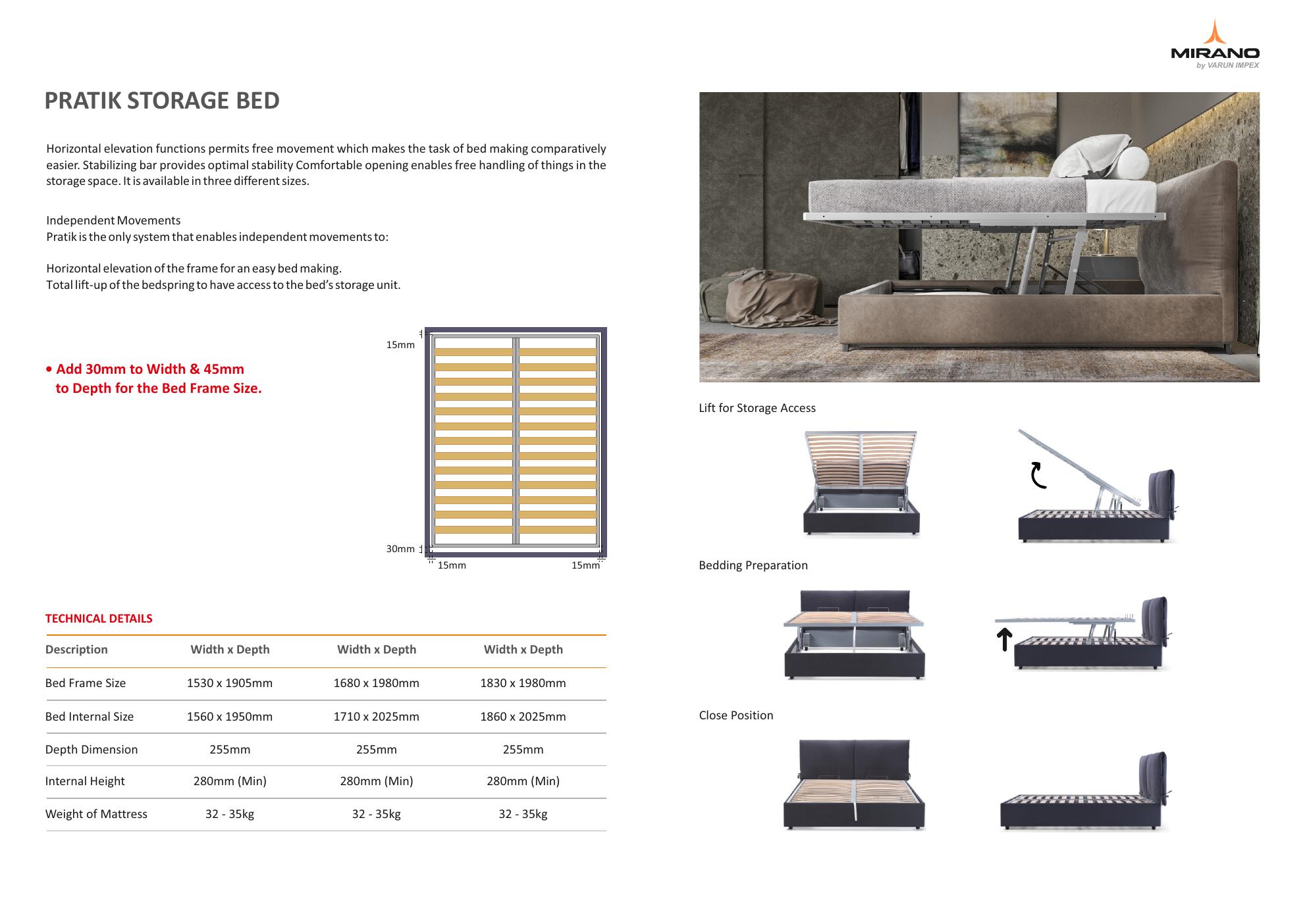

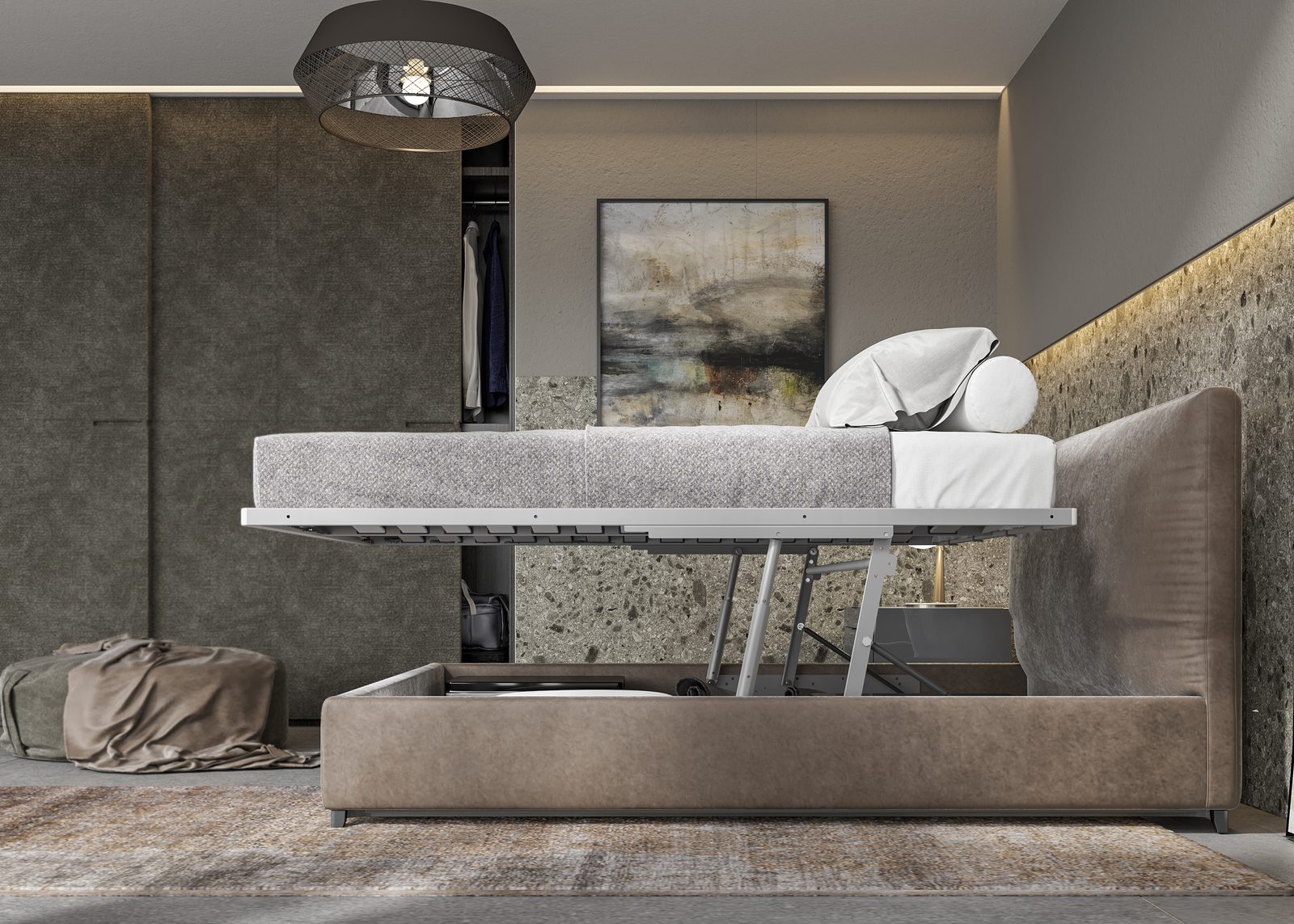

Pratik Storage Bed Fitting — Dual-Motion Hydraulic Storage Mechanism
Pratik is the only storage bed fitting in the Mirano range with two independent movements built into one mechanism: a horizontal elevation that lifts just the frame for easy bed-making, and a full lift-up of the bedspring for complete access to the storage compartment underneath. A stabilizing bar keeps the whole system steady in both positions.
Key features
- Independent horizontal elevation — makes daily bed-making effortless without disturbing storage
- Full lift-up access to under-bed storage
- Built-in stabilizing bar for consistent support in any position
- Available in three width-by-depth sizes
Technical specifications
| Description | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Bed Frame Size | 1530 × 1905mm | 1680 × 1980mm | 1830 × 1980mm |
| Bed Internal Size | 1560 × 1950mm | 1710 × 2025mm | 1860 × 2025mm |
| Depth Dimension | 255mm | 255mm | 255mm |
| Internal Height | 280mm (Min) | 280mm (Min) | 280mm (Min) |
| Weight of Mattress | 32–35kg | 32–35kg | 32–35kg |
- Size 1
- 1530 × 1905mm
- Size 2
- 1680 × 1980mm
- Size 3
- 1830 × 1980mm
- Size 1
- 1560 × 1950mm
- Size 2
- 1710 × 2025mm
- Size 3
- 1860 × 2025mm
- Size 1
- 255mm
- Size 2
- 255mm
- Size 3
- 255mm
- Size 1
- 280mm (Min)
- Size 2
- 280mm (Min)
- Size 3
- 280mm (Min)
- Size 1
- 32–35kg
- Size 2
- 32–35kg
- Size 3
- 32–35kg
Sizing note: Add 30mm to width and 45mm to depth over the internal size to get the final bed frame size.

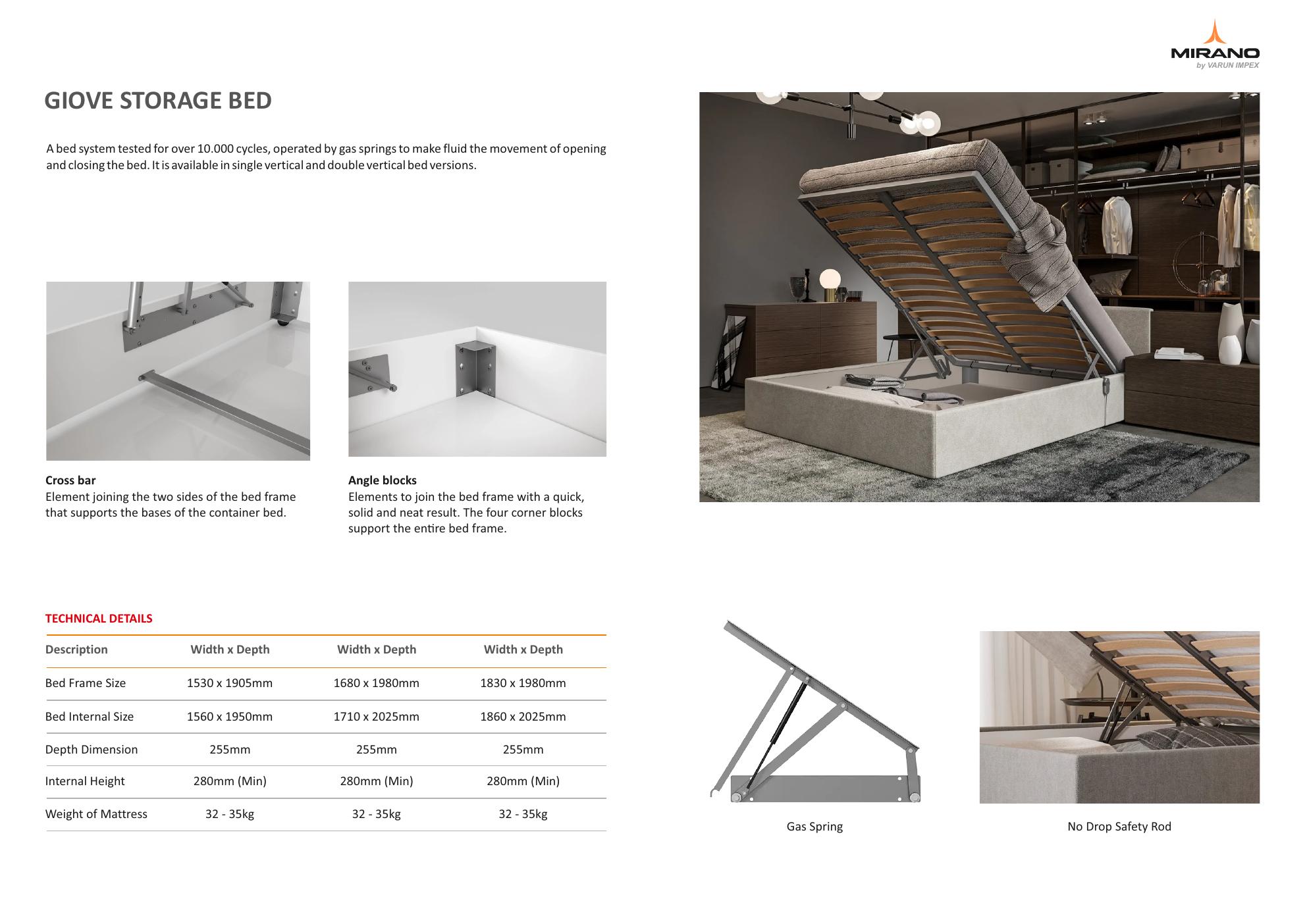

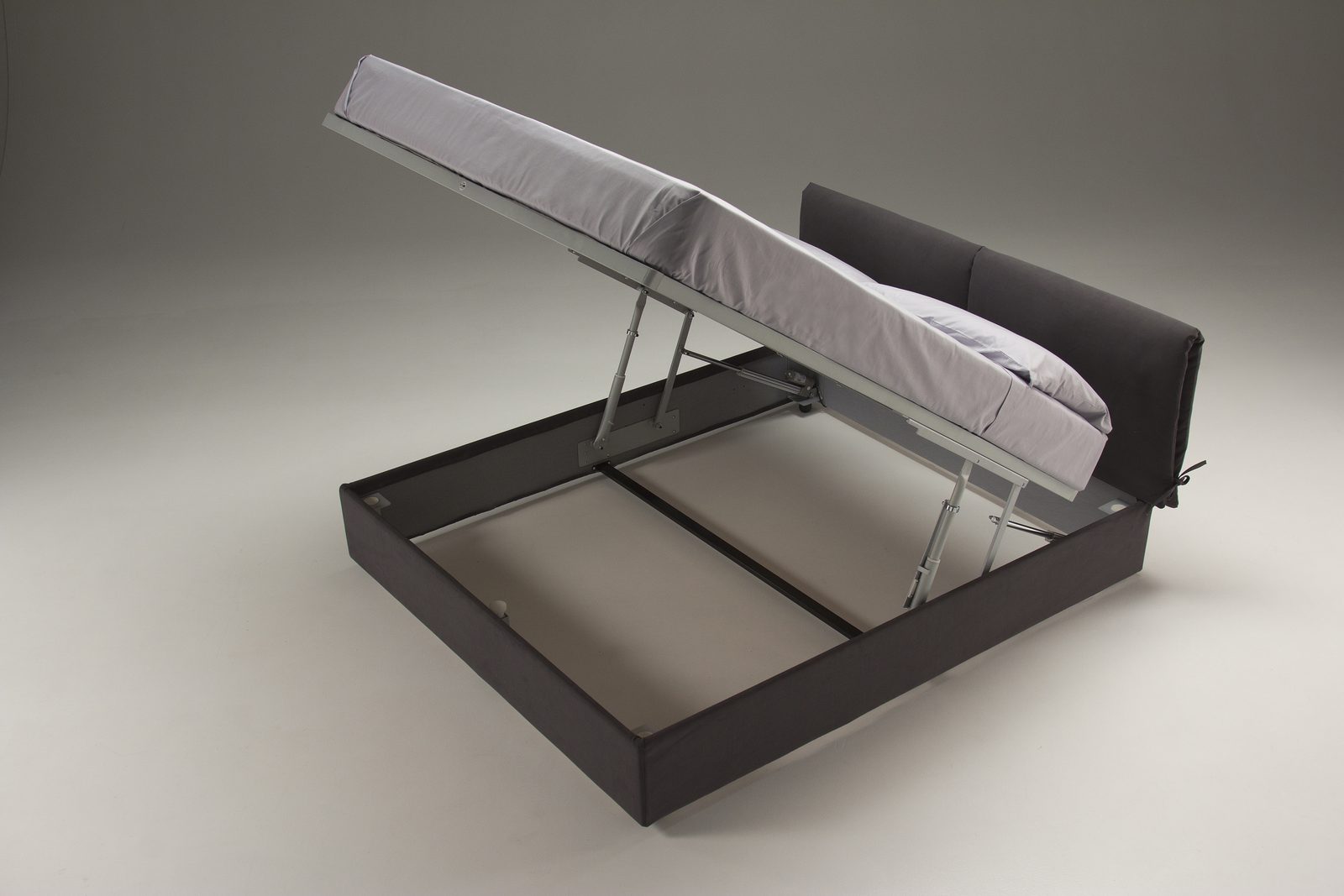

Giove Storage Bed Fitting — Gas Spring Hydraulic Storage Mechanism
Giove is Mirano's heavy-duty gas-spring storage bed fitting, tested for over 10,000 open-close cycles. A cross bar joins both sides of the frame for rigidity, while four corner angle blocks lock the frame together for a solid, professional finish. A no-drop safety rod holds the bed base securely in the open position — critical for safe daily storage access.
Key features
- Gas springs tested for 10,000+ cycles — built for daily long-term use
- Cross bar for structural rigidity across the frame
- Four corner angle blocks for a quick, solid frame assembly
- No-drop safety rod prevents accidental closure while accessing storage
- Available in single vertical and double vertical bed versions
Technical specifications
| Description | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Bed Frame Size | 1530 × 1905mm | 1680 × 1980mm | 1830 × 1980mm |
| Bed Internal Size | 1560 × 1950mm | 1710 × 2025mm | 1860 × 2025mm |
| Depth Dimension | 255mm | 255mm | 255mm |
| Internal Height | 280mm (Min) | 280mm (Min) | 280mm (Min) |
| Weight of Mattress | 32–35kg | 32–35kg | 32–35kg |
- Size 1
- 1530 × 1905mm
- Size 2
- 1680 × 1980mm
- Size 3
- 1830 × 1980mm
- Size 1
- 1560 × 1950mm
- Size 2
- 1710 × 2025mm
- Size 3
- 1860 × 2025mm
- Size 1
- 255mm
- Size 2
- 255mm
- Size 3
- 255mm
- Size 1
- 280mm (Min)
- Size 2
- 280mm (Min)
- Size 3
- 280mm (Min)
- Size 1
- 32–35kg
- Size 2
- 32–35kg
- Size 3
- 32–35kg

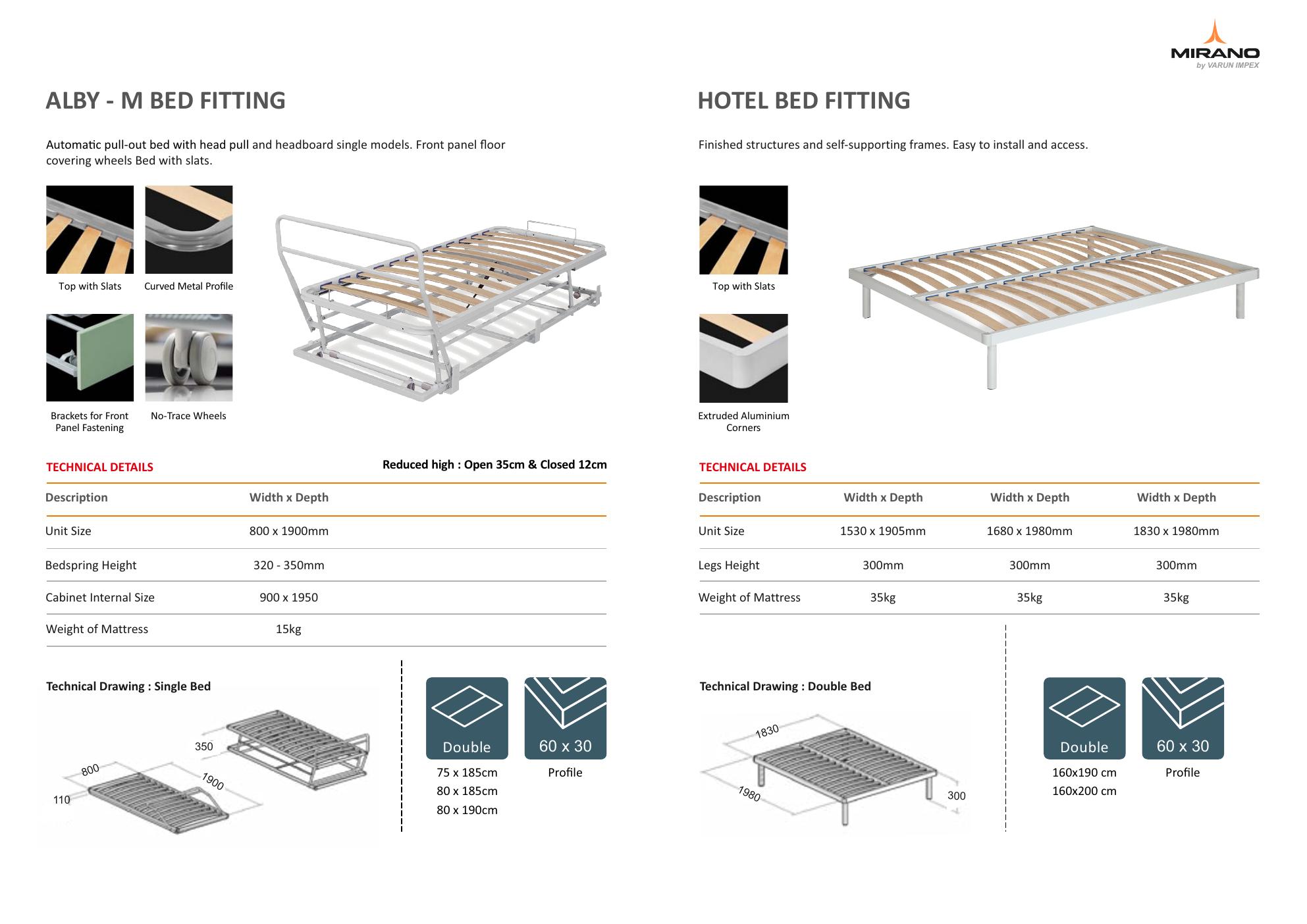

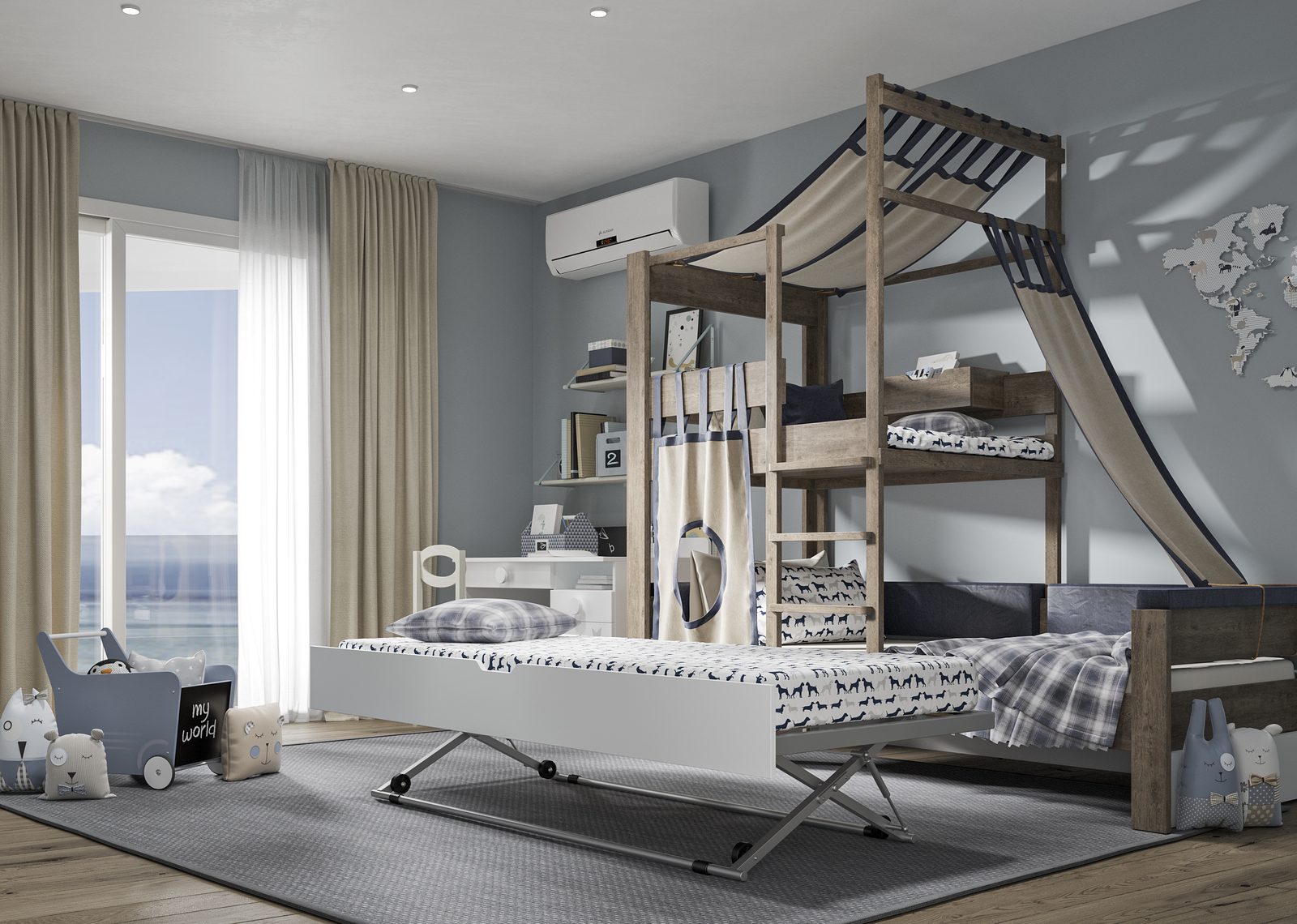

Alby-M Bed Fitting — Automatic Pull-Out Bed Mechanism with Head Pull
The Alby-M is an automatic pull-out bed fitting with a head-pull opening action and single or headboard models. It rolls out on no-trace wheels that protect flooring, and its front panel brackets give a clean, finished look once installed. A curved metal profile on the slatted top adds comfort without extra padding underneath.
Key features
- Automatic pull-out with head-pull opening
- No-trace wheels — floor-safe operation, no scuff marks
- Curved metal profile slat top for comfort
- Brackets for clean front-panel fastening
- Reduced height: opens to 35cm, closes to just 12cm — fits under most standard bed frames
Technical specifications
| Description | Details |
|---|---|
| Unit Size | 800 × 1900mm |
| Bedspring Height | 320–350mm |
| Cabinet Internal Size | 900 × 1950mm |
| Weight of Mattress | 15kg |
- Details
- 800 × 1900mm
- Details
- 320–350mm
- Details
- 900 × 1950mm
- Details
- 15kg
- • Compatible mattress sizes (single): 75×185cm / 80×185cm / 80×190cm — 40×30 profile
- • Compatible mattress sizes (double): 160×190cm / 160×200cm — 60×30 profile

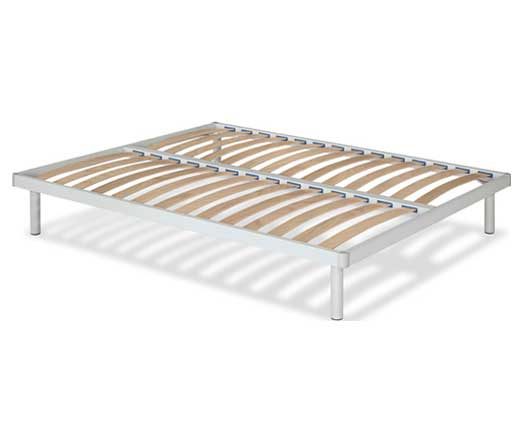

Hotel Bed Fitting — Self-Supporting Bed Frame System
Built for speed and reliability at scale, the Hotel Bed Fitting is a finished, self-supporting bed frame — no wardrobe cabinet, no wall mounting, no hydraulic lift needed. Extruded aluminium corners keep the frame square and stable on its own legs, making it fast to install across dozens or hundreds of rooms with consistent quality.
Key features
- Fully self-supporting — no cabinetry or wall structure required
- Extruded aluminium corner joints for long-term structural stability
- Fast, consistent installation across multiple units
- Available in three unit sizes to match single, queen, and king mattress formats
Technical specifications
| Description | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Unit Size | 1530 × 1905mm | 1680 × 1980mm | 1830 × 1980mm |
| Legs Height | 300mm | 300mm | 300mm |
| Weight of Mattress | 35kg | 35kg | 35kg |
- Size 1
- 1530 × 1905mm
- Size 2
- 1680 × 1980mm
- Size 3
- 1830 × 1980mm
- Size 1
- 300mm
- Size 2
- 300mm
- Size 3
- 300mm
- Size 1
- 35kg
- Size 2
- 35kg
- Size 3
- 35kg
- • Compatible mattress sizes (double): 160×190cm / 160×200cm — 60×30 profile

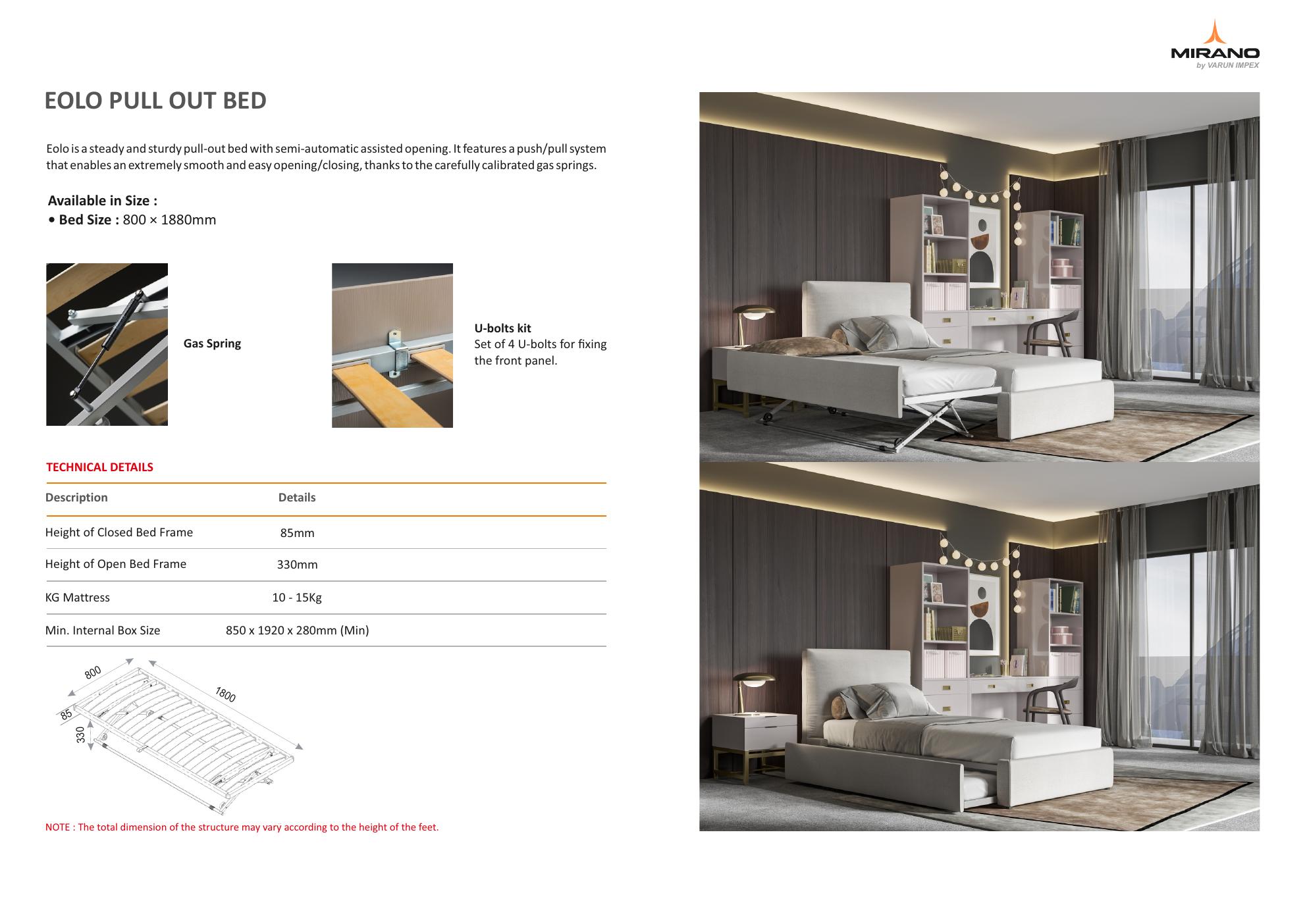

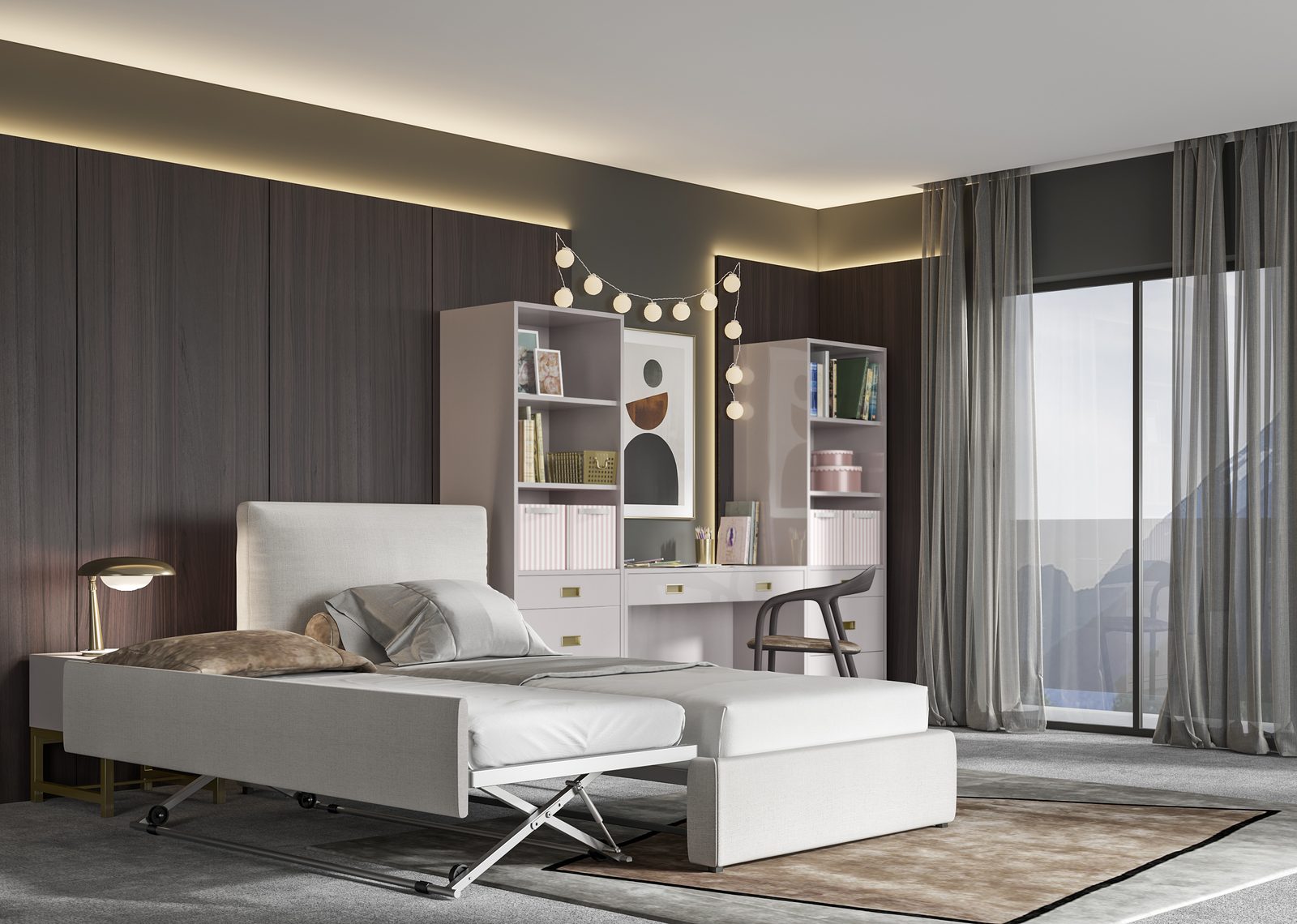

Eolo Pull Out Bed — Semi-Automatic Gas Spring Trundle Mechanism
Eolo is a steady, sturdy pull-out (trundle) bed fitting with semi-automatic, spring-assisted opening. A push/pull system backed by carefully calibrated gas springs makes extending and retracting the bed smooth with minimal effort — no need to lift or drag the frame manually.
Key features
- Semi-automatic push/pull system with calibrated gas springs
- Smooth, low-effort opening and closing
- Includes a 4-piece U-bolt kit for securing the front panel
- Compact closed height for storage under a primary bed
Technical specifications
| Description | Details |
|---|---|
| Height of Closed Bed Frame | 85mm |
| Height of Open Bed Frame | 330mm |
| KG Mattress | 10–15kg |
| Min. Internal Box Size | 850 × 1920 × 280mm (Min) |
- Details
- 85mm
- Details
- 330mm
- Details
- 10–15kg
- Details
- 850 × 1920 × 280mm (Min)
Note: total structure dimensions may vary slightly depending on the height of the feet used.

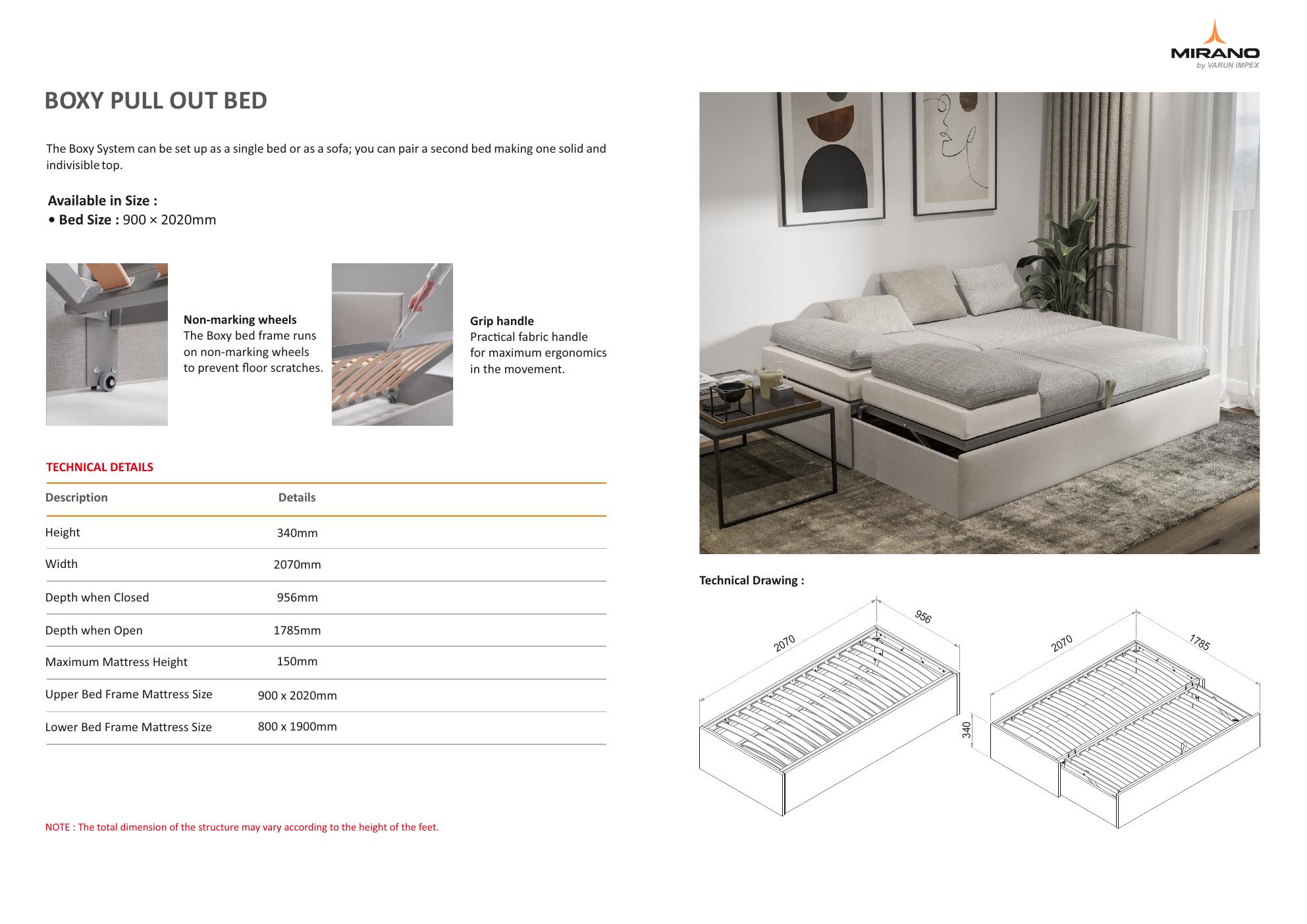

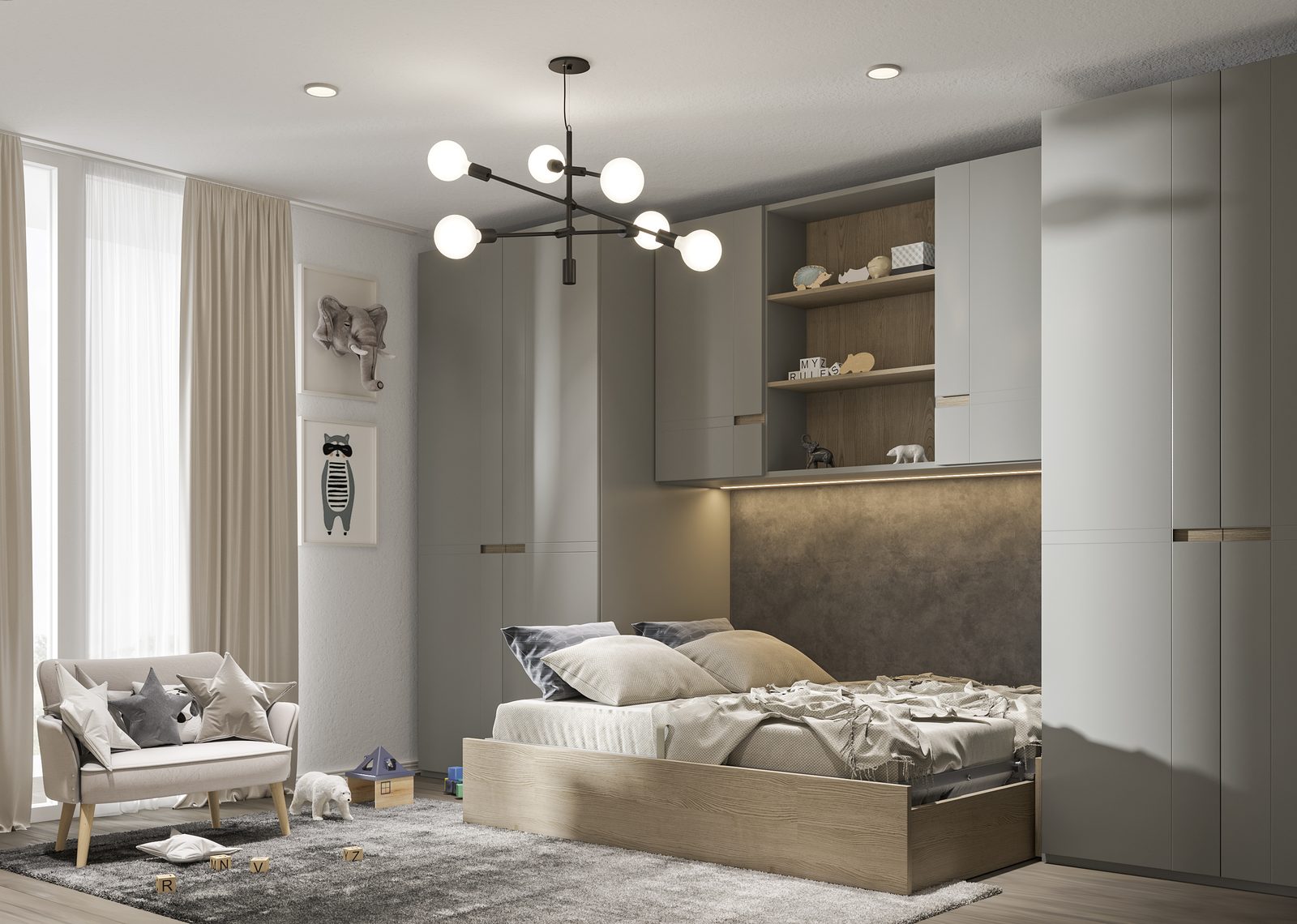

Boxy Pull Out Bed — Convertible Sofa & Pull-Out Bed System
The Boxy System is a flexible pull-out bed fitting that works equally well as a single bed or a daytime sofa. Pair two Boxy units together and they combine into one solid, indivisible sleeping surface — giving furniture designers a single hardware system that covers both a standalone daybed and a full double-bed configuration.
Key features
- Converts between single bed and sofa seating
- Pairs with a second unit to form one solid double-bed top
- Runs on non-marking wheels — protects flooring from scratches
- Practical fabric grip handle for smooth, ergonomic operation
Technical specifications
| Description | Details |
|---|---|
| Height | 340mm |
| Width | 2070mm |
| Depth when Closed | 956mm |
| Depth when Open | 1785mm |
| Maximum Mattress Height | 150mm |
| Upper Bed Frame Mattress Size | 900 × 2020mm |
| Lower Bed Frame Mattress Size | 800 × 1900mm |
- Details
- 340mm
- Details
- 2070mm
- Details
- 956mm
- Details
- 1785mm
- Details
- 150mm
- Details
- 900 × 2020mm
- Details
- 800 × 1900mm
Note: total structure dimensions may vary slightly depending on the height of the feet used.
Nilo Hideaway Single Bed — Foldaway Bed & Desk Mechanism
Nilo solves a problem other wall beds don't: keeping a desk usable while the bed is closed. Its foldaway mechanism keeps the desktop's inclination perfectly constant through the entire opening and closing motion, so users never have to clear the desk before pulling the bed down. The design also eliminates all pinch and cutting points for safer daily use.
Key features
- Desk top stays perfectly horizontal throughout the fold — no need to clear it before opening the bed
- Balanced, easy manual opening
- Mechanism design eliminates cutting/crushing points for safety
- Combines a functional desk and a hidden single bed in one footprint
Technical specifications
| Description | Details |
|---|---|
| Height | 1014mm |
| Width | 2135mm |
| Depth | 400mm |
| Internal Width | 2076mm |
| Minimum Side Thickness | 25mm |
| Minimum Door Thickness | 18mm |
| Depth Dimension | 665mm |
| Depth Size when Closed | 825mm |
| Desk Top Width | 2006mm |
| Desk Top Depth | 420mm |
- Details
- 1014mm
- Details
- 2135mm
- Details
- 400mm
- Details
- 2076mm
- Details
- 25mm
- Details
- 18mm
- Details
- 665mm
- Details
- 825mm
- Details
- 2006mm
- Details
- 420mm
Note: total structure dimensions may vary slightly depending on the height of the feet used.
Which Mirano Bed Fitting Is Right for Your Project?
A side-by-side view of the full range to help you spec quickly.
- Mechanism
- Wall bed (vertical)
- Manual/Motorized
- Both
- Size
- 1620×2000mm
- Best for
- Compact apartments
- Mechanism
- Wall bed (vertical)
- Manual/Motorized
- Both
- Size
- 1620×2000mm
- Best for
- Living-room-as-bedroom
- Mechanism
- Wall bed (vertical)
- Manual/Motorized
- Manual
- Size
- 870×2000mm
- Best for
- Kids' rooms, studios
- Mechanism
- Storage (dual motion)
- Manual/Motorized
- Manual
- Size
- 3 sizes, up to 1830×1980mm
- Best for
- Master bedrooms
- Mechanism
- Storage (gas spring)
- Manual/Motorized
- Manual
- Size
- 3 sizes, up to 1830×1980mm
- Best for
- High daily-use bedrooms
- Mechanism
- Pull-out (under-bed)
- Manual/Motorized
- Automatic
- Size
- 800×1900mm
- Best for
- Hidden second bed
- Mechanism
- Self-supporting frame
- Manual/Motorized
- N/A (fixed)
- Size
- 3 sizes, up to 1830×1980mm
- Best for
- Hospitality projects
- Mechanism
- Pull-out (trundle)
- Manual/Motorized
- Semi-automatic
- Size
- 800×1880mm
- Best for
- Guest/kids' rooms
- Mechanism
- Pull-out / sofa-bed
- Manual/Motorized
- Manual
- Size
- 900×2020mm
- Best for
- Flexible living rooms
- Mechanism
- Wall bed + desk
- Manual/Motorized
- Manual
- Size
- 870×2000mm
- Best for
- Home offices
Why Modular Furniture Manufacturers Choose Mirano Bed Fittings
Engineered for daily use
Reinforced tube sections, tested gas springs (10,000+ cycles on Giove), and safety features like the no-drop rod are built in, not optional add-ons.
Manual and motorized options
Offer your clients both budget-friendly manual mechanisms and premium remote-controlled motorized versions from a single supplier.
Complete technical documentation
Every fitting ships with exact cabinet sizes, weight limits, and dimensioned drawings, so your production team gets it right the first time.
Manufactured in India, supplied nationwide
Based in Palghar, Maharashtra, with dispatch across India for bulk and project orders.
One supplier, full range
Wall beds, storage beds, pull-out systems, and hotel bed frames from a single, consistent source — simplifying your BOM and vendor management.
Built for Furniture Manufacturers, Carpenters & Interior Designers
Modular furniture manufacturers
Integrate Mirano mechanisms into your wardrobe-bed and sofa-bed product lines with confidence in consistent specs across batches.
Carpenters & fabricators
Every fitting comes with clear technical drawings so on-site or workshop fabrication matches spec exactly.
Interior designers & architects
Specify by product name and size directly from this page for BOQs and client presentations.
Hospitality & real estate developers
The Hotel Bed Fitting and pull-out systems are built for consistent, fast installation across multiple units.
Frequently Asked Questions
Get Technical Specifications & Pricing
Whether you're speccing a single hideaway bed or sourcing pull-out mechanisms for a 200-room hotel project, our team can help you pick the right fitting and get you exact pricing.
- +91 9167883194
- sales@mirano.in / varunimpexkba@gmail.com
- Gala No. 04, Plot No. 21, Papdy Industrial Estate, Umela Phata, Vasai Road (West), Palghar – 401207
